GOODSMANN Low Voltage Transformer 120W with Timer Photo Eye Outdoor Lighting Transformer with Camo Pattern for Landscape Lights 120V AC to 12V AC 9111-12002-01A

"Timer" Mode: The landscape lights that are connected with the transformer will turn on or off at the set time. 1. Knob needs to be turned to TIMER, hold down the CLOCK button while pressing either up or down button to set the clock to local time. 2. Then hold down the TIMED ON/TIMED OFF button while pressing either the up or down button to set on or off time. "4/6/8/10" Mode The landscape lights that are connected with the transformer will automatically turn on at dusk and turn off 4/6/8/10 later. 1. Mount the photo-eye bracket on a wall or other solid surface with the screw provided. Turn the knob to 4/6/8/10 mode. 2. NOTE: The position of the photo-eye can influence at what light level the power pack will turn on in the 4/6/8/10 mode. Placing the sensor in areas receiving less sunlight at dusk (east side of the house, behind trees and bushes, under a deck) will have the power pack come on earlier in the evening. "Auto" Mode The landscape lights that are connected with the transformer will automatically turn on at dusk and turn off at dawn. 1. Mount the photo-eye bracket on a wall or other solid surface with the screw provided. Turn the knob to AUTO mode. 2. NOTE: The position of the photo-eye can influence at what light level the power pack will turn on in the AUTO mode. Placing the sensor in areas receiving less sunlight at dusk (east side of the house, behind trees and bushes, under a deck) will have the power pack come on earlier in the evening. "ON/OFF" Mode Manually on and manually off and the landscape lights that are connected with the transformer will be turned on or of. 1. Turn the knob to ON/OFF mode, the transformer always remains on or off.

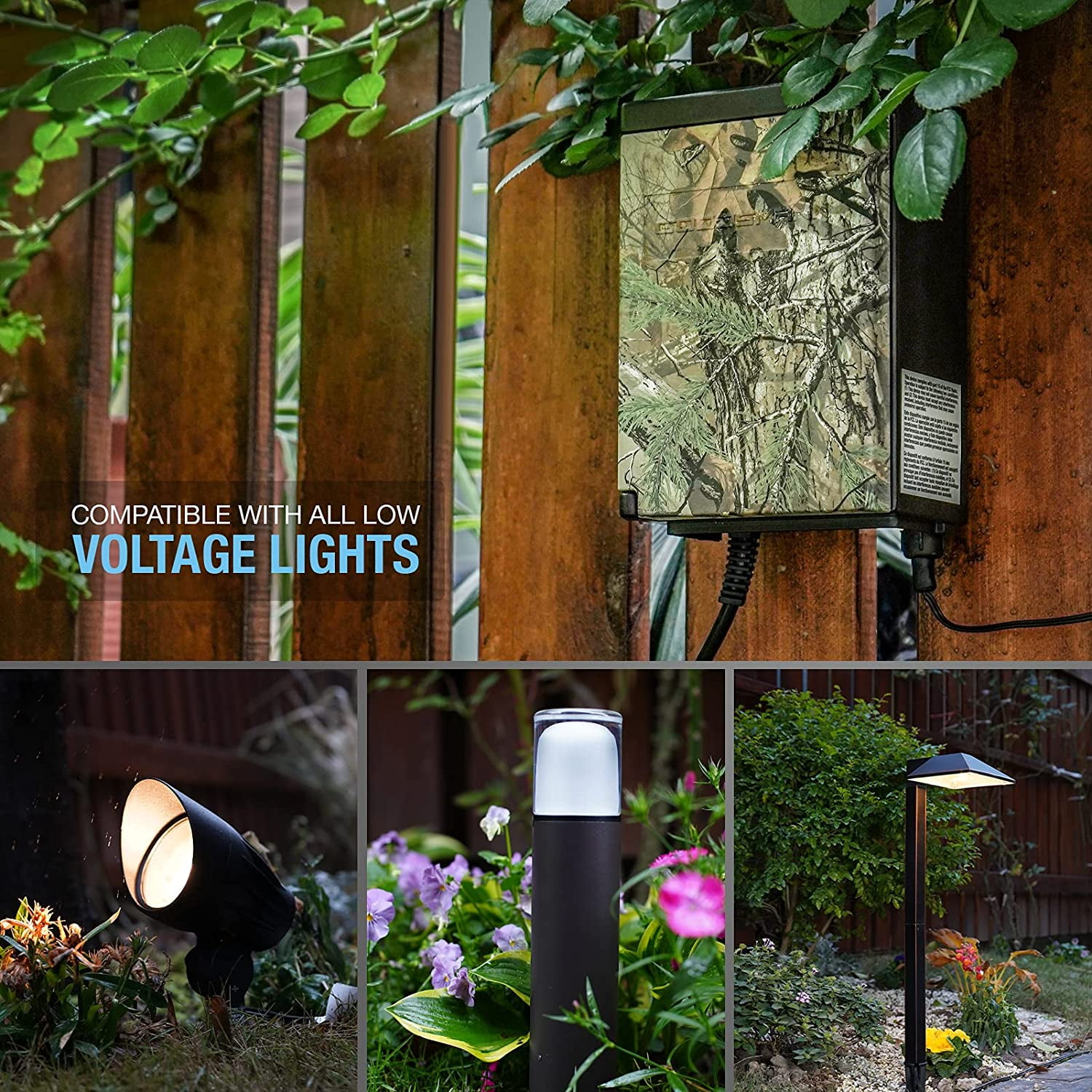

• WIDELY APPLICABLE: Landscape transformer for your low voltage lighting needs. Goodsmann low voltage transformer is compatible with 12V low voltage landscape lighting system and can be used with LED and halogen lights etc

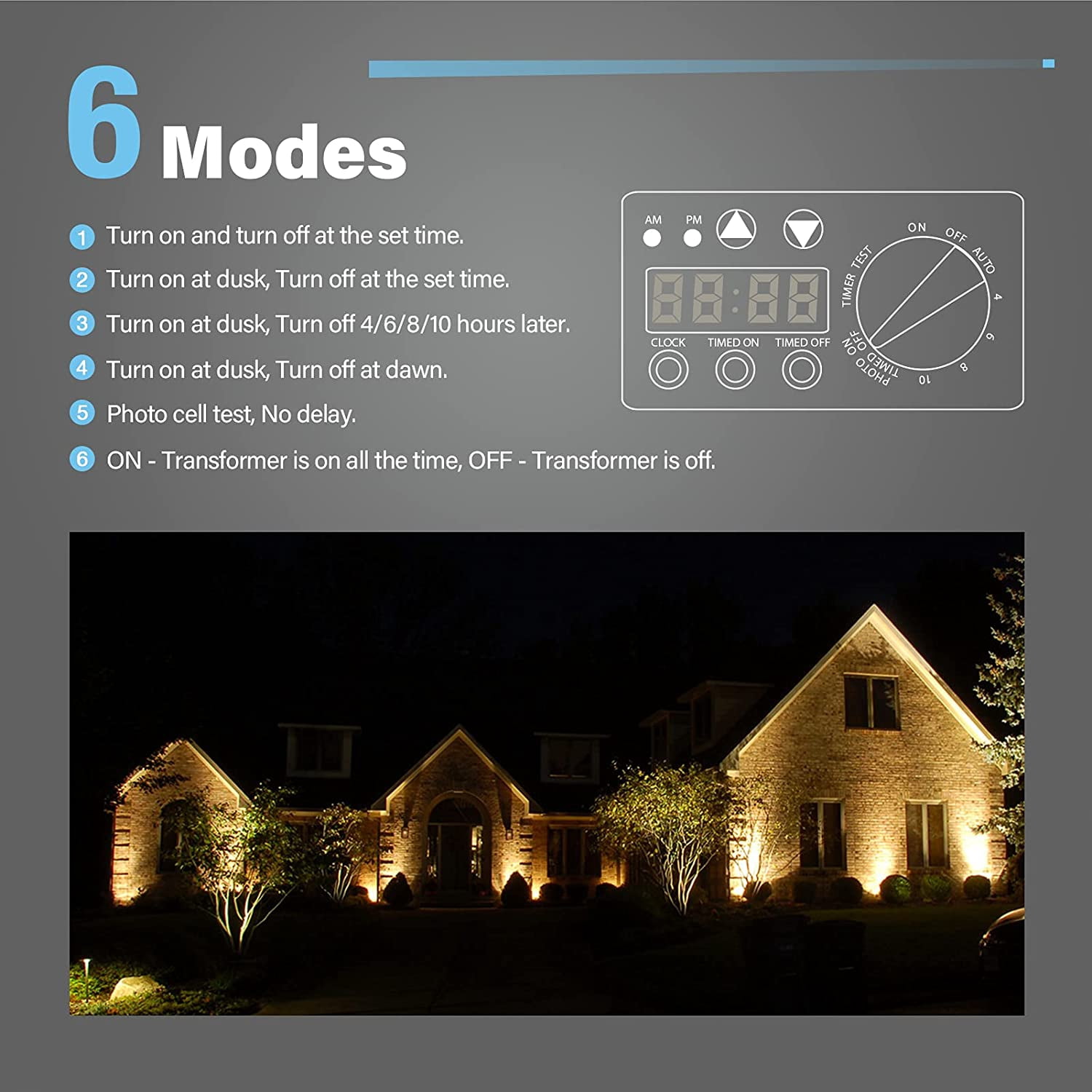

• 6 VERSATILE MODES: TIMER(timed on/off), AUTO(dusk-to-dawn), 4/6/8/10 (turn on at dusk and turn off /4/6/8/10 hours later), PHOTO ON/ TIMED OFF(turn on at dusk, turn off at the set time), ON, OFF

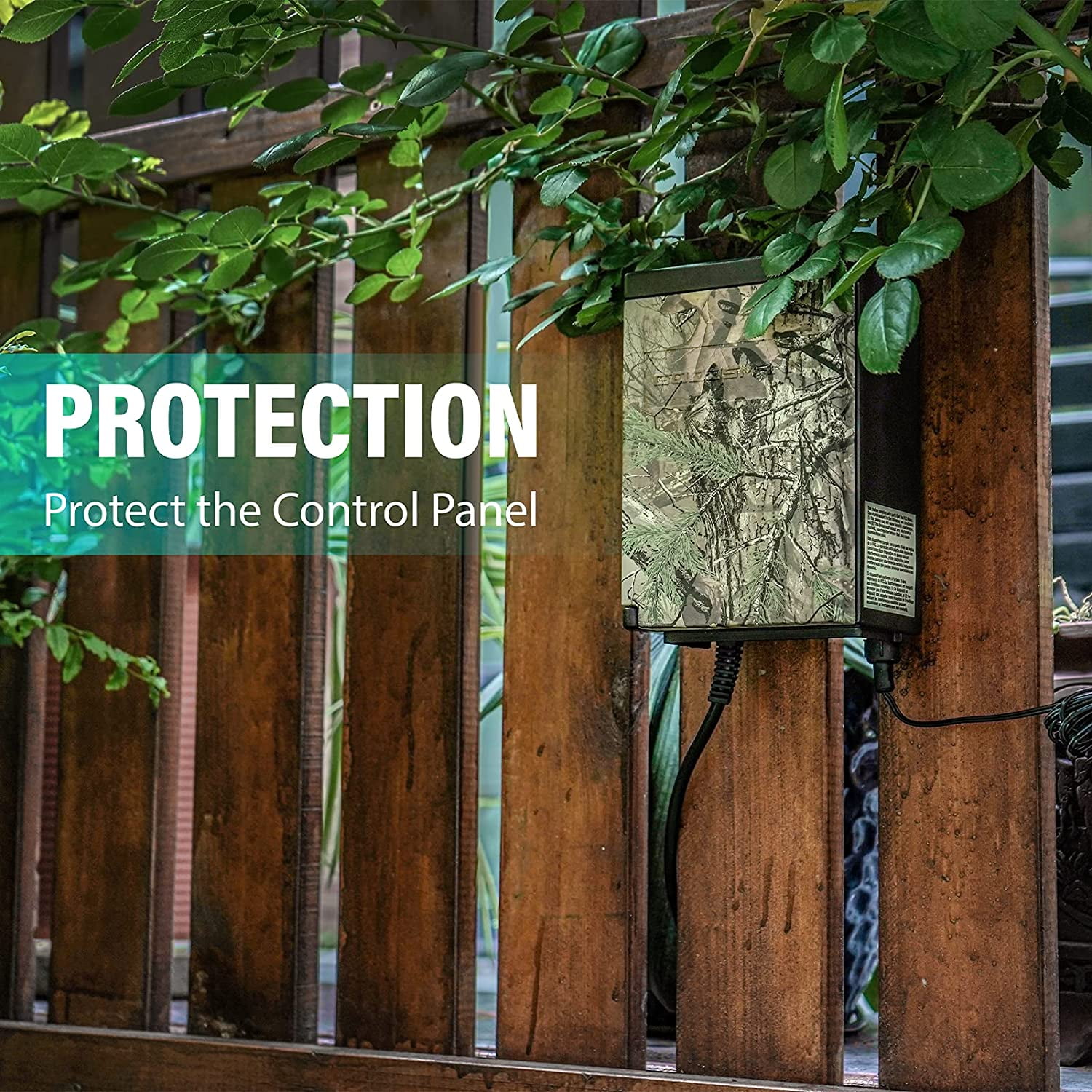

• CAMO DESIGN: Rainproof door is painted with a camo pattern that protects the control panel from wind, rain, and sun while adding a touch of stylish scenery to your outdoor lighting system and it is very well put together with flowers and plants in your yard

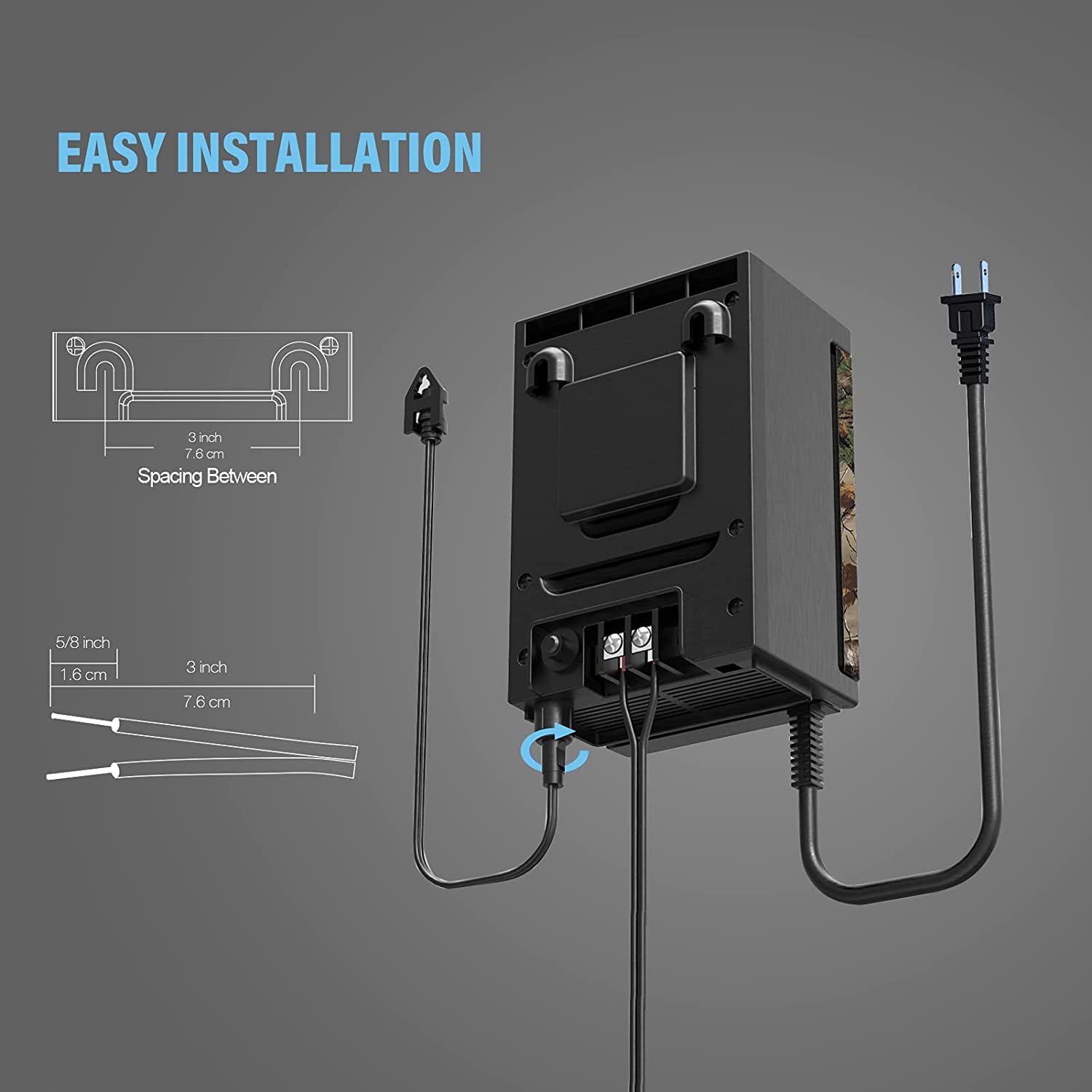

• EASY TO OPERATE: Intuitive interface designed for easy use. There have 2 hanging holes on the back for hanging the transformer. There is an output terminal on the bottom of the back for connecting cables
• SAFELY: The transformer will convert 120V AC household voltage to 12V AC safety voltage, built-in overload protector. Inspect contents of the box to ensure all parts are included and undamaged
